产品说明：

1、航钛铝合金车架， 整车技术参数： 93x63x98(cm） 坐宽44cm.坐深43cm, 坐高50cm

2、靠背高度50cm靠背管可以上调。

3、踏板到坐垫的高度41cm,踏板可以折叠

4、坐垫靠背采用黑色网格设计， 通风透气， 坐垫搭扣设计松紧可以调节。

5、整车配有防后翻， 防止轮椅后翻。

6、配有有刷免维护电机， 万向前轮， 转动自如， 充气后轮舒适安稳， 易折叠， 折叠后，可放后备箱。

7、限制速度6km/h,续航12-15公里， 爬坡度9°

8、整车重量26kg,载重120kg

9、双减震设计， 前轮7寸， 后轮10寸

10、刹车系统采用电磁自动刹车。

11、电池标配12A,充电器DC24V2AAC115-230V,充电时间6小时， 可以另外加钱选20A电池

12、驱动马达系统： 有刷高扭矩电机

13、智能编程控制器

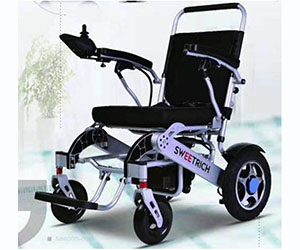

1. Aviation titanium alloy frame, technical parameters of the vehicle: 93x63x98(cm), sitting width 44cm, sitting depth 43cm, sitting height 50cm
2. The backrest height of 50cm can be adjusted upward.
3.The height from the pedal to the cushion is 41cm, and the pedal can be folded
4. The backrest of the seat cushion is designed with black mesh, which is ventilated and breathable. The elasticity of the seat cushion buckle design can be adjusted.
5. The whole vehicle is equipped with anti-backturning to prevent the wheelchair from turning backwards.
6. Equipped with brushed maintenance-free motor, universal front wheel, free rotation, inflatable rear wheel is comfortable and stable, easy to fold and fold
After stacking, you can put the trunk.
7. The maximum speed is 6km/h, the endurance is 12-15 kilometers, and the climbing degree is 9°
8. The vehicle weight is 26kg and the load is 120kg
9. Double shock absorption design, front wheel 7 inches, rear wheel 10 inches
10. The brake system adopts electromagnetic automatic brake.
11. The standard battery is 12A, the charger is DC24V2AAC115-230V, the charging time is 6 hours, and you can add extra money.
20A battery
12. Drive motor system: brushed high torque motor
13. Intelligent programming controller
