规格尺寸：2200x950x420

产品功能：

D型铝合金护栏，上下翻转结构:ABS高档双面杀车静音轮，保证各方面均可制动；床板采用冷轧钢板一次性冲压成型，具有良好的防滑和透气性。

床体承重不小于240KG。

技术参数：

床体骨架采用60*40*1.5的成型方管焊接而成，先进的焊接工艺，焊接质量优质，床体坚固，可承载≥260kg;

床面:采用1.2mm的冷轧钢板。冲压成凹型，多气孔设计，便于透气并具有防滑功能。

床头、床尾板采用ABS工程塑料一次注塑成型，挂式设计可拆卸方便，稳定可靠，尾板外侧有病人信息卡插楼；

欧式四小ABS护栏设计，采用阻尼器装置控制速度及噪音.放下可隐藏于床面板下方与床椎平齐；

配置中控制动脚轮，高稳定性连动系统，刹车稳定方便，防水、防尘，双轮饼设计以增加着地面积，增加稳定性。

配置ABS摇手内置钢芯,隐藏式设计，牢固灵活，无噪音，操作轻松自如，可灵活调节患者背部、腿部体位升降。

四角带有输液架插孔以及引流挂钩，可选配输液架。

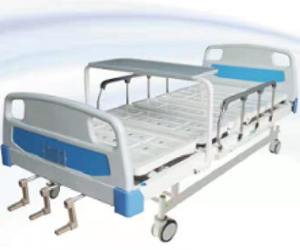

Size: 2200x950x420

Product features：

Overall lifting: 480--760 mm;

Back adjustment 75°±5°; Leg adjustment 30°±5°

D-type aluminum alloy guardrail, up and down flip structure :ABS high-grade double-sided kill mute wheel, ensure that all aspects can brake; The bed plate is made of cold rolled steel plate, which has good anti-slip and air permeability.

The bearing capacity of the bed is not less than 240KG.

Technical parameters：

The bed body skeleton is welded by 60*40*1.5 shaped square tube, advanced welding process, high welding quality, strong bed, bearing capacity ≥260kg;

Bed surface: 1.2mm cold rolled steel plate. Pressed into concave, multi - hole design, easy to breathe and with anti - slip function.

Bed electrostatic spraying process: first coated with oil, pickling, table adjustment, carbonization, plastic spraying drying is made of Aksu Nobel environmental protection antibacterial powder electrostatic spraying, with anticorrosion and rust prevention, fine appearance

Beauty and other characteristics.

The head of the bed and the tail plate of the bed are made of ABS plastic injection molding. The hanging design is detachable and convenient, stable and reliable. The outside of the tail plate is inserted with the patient information card.

European four small ABS guardrail design, using damper device to control speed and noise. Put down can be hidden under the bed panel and bed vertebra flush;

Central control brake casters, high stability linkage system, stable and convenient braking, waterproof, dustproof, double wheel cake design to increase the ground area, increase stability.

Equipped with ABS rocker with built-in steel core, hidden design, firm and flexible, noiseless, easy to operate, can flexibly adjust the patient's back, leg position rise and fall.

Rocker drive system, no plastic structure, wear resistance, pressure resistance, long life, add two-way in place without limit protection device, enhance service life and safety performance, to ensure the use of labor saving, shakingSmoothly.

Four corners with infusion stand jack and drainage hook, optional infusion stand.
