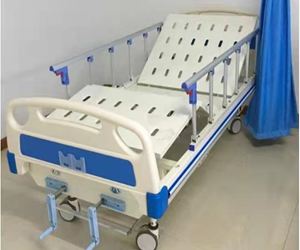

规格：2150*900*500mm

产品配置：ABS床头板，整体喷塑，床面采用冷轧钢一次冲压成型双摇。
背板折起角度：0-70°(可调)
腿板折起角度：0-45°(可调)
床腿包有塑胶脚套。
床面长度(不含床架)为：2050mm±10mm
床面宽度为：900mm±10mm
床面离地高度为：500mm±10mm
背框长度为：700mm±10mm
背框折起角度为：≥50°床的自重为：(净重)55.0Kg
摇杆为ABS摇把，采用双向过盈保护装置结构合理、坚固耐用、经静电喷塑处理。适合三甲医院使用。
床头床尾板采用ABS材料，一次注塑成型，头高脚低设计，强度高，装有锁紧装置，可快速拆卸，可兼做CPR板应急使用，满足临床急救需求。

可选配置： 1、轮子为塑包静音轮，高耐磨，无噪音，带刹车，稳定性好
2、伸缩护栏，半棕半海绵床垫
1、床体可配四个输液架孔，方便病人四肢输液，输液架为不锈钢伸缩输液架
2、床尾配置鞋盆架，方便病人放置日常所需杂物使用。
3、可配引流挂钩。

Specification: 2150 * 900 * 500 mm

Product configuration: ABS headboard, integral plastic spraying, bed surface using cold rolled steel forming double shake.

Backplane folding Angle: 0-70°(adjustable)

Leg plate folding Angle: 0-45°(adjustable)

The bed legs are covered with plastic foot covers.

Length of bed surface (excluding bed frame) : 2050mm±10mm

The width of the bed is 900mm±10mm

The height of the bed from the ground is: 500mm±10mm

The back frame length is 700mm±10mm

Back frame folding Angle: ≥50° Bed weight: (net weight)55.0Kg

The rocker is ABS handle, which adopts two-way interference protection device with reasonable structure, strong and durable, and processed by electrostatic spraying. Suitable for use in grade A hospitals.

The head and tail plates are made of ABS material and molded by injection molding once. The head is high and the foot is low, with high strength and locking device, which can be quickly disassembled and used as CPR plates for emergency use to meet the needs of clinical first aid.

Optional configuration:

1, the wheel is plastic bag mute wheel, high wear resistance, no noise, with brake, good stability

2. Telescopic guardrail, half brown and half sponge mattress

1, the bed can be equipped with four infusion rack holes, convenient for patients limbs infusion, infusion rack for stainless steel telescopic infusion rack

2, the end of the bed is equipped with shoe basin rack, convenient for patients to place daily sundries.

3, can be equipped with drainage hook.
